Gold Note

PH-5.2

The PH-5 is the latest born at Gold Note’s range of phono stages, designed to deliver the same high quality and excellent performance that made the PH-10 and PH-1000 famous, with an affordable price and all the cutting-edge features that stands out our products.

£999

1 year warranty

PH-5.2

£999

PH-5.2 is born as the direct evolution of the PH-5, but above all as the mature expression of a vision that Gold Note has pursued for years in the world of analogue audio: high-fidelity is not a matter of taste or sonic signature, but a responsibility towards the original recording.

This is therefore not a simple update, nor a marginal refinement. PH-5.2 is the result of a project focused on the elements that truly matter, such as mechanical structure, power supply, interface and equalisation management, with a clear objective: reducing interference in order to increase coherence and always deliver more music.

A NEW DESIGN BORN FROM FUNCTION
PH-5.2 introduces the new, exclusive visual language of the Series 5.2.
The design is more essential, more rigorous, and immediately recognisable compared to the previous generation. But this new identity does not arise from a purely stylistic need.
In the world of phono stage, where the signals being processed are extremely weak, every construction choice has a direct impact on the quality of the final result.
For this reason, PH-5.2 adopts a new anodised aluminium chassis, chosen for its extremely low interaction with magnetic fields.
Aluminium makes it possible to create a cleaner and more stable electrical and mechanical environment, reducing the micro-interferences that contribute to background noise. The benefit is not theoretical, but immediately perceptible: a blacker background, greater detail articulation and a more natural musical presentation.
In PH-5.2, as in the design choices of all our products, aesthetics are the direct consequence of function: fewer interferences mean more musical information emerging.

NEW POWER SUPPLY: THE FOUNDATION OF SONIC CREDIBILITY
In a phono stage, the power supply is not an accessory element.
It is the foundation on which much of the project is built.
PH-5.2 introduces an improved power supply, designed to guarantee greater stability and control under real-world operating conditions. This allows the circuit to operate without stress, maintaining coherence even during the most complex and dynamically demanding passages.
In listening terms, this translates into a greater sense of solidity, better-controlled bass and a cleaner, more relaxed high-frequency range. When the power supply is stable, the sound does not require any “forcing” – it simply flows.

INTERFACE AND USABILITY: PRECISION THAT MAKES THE DIFFERENCE

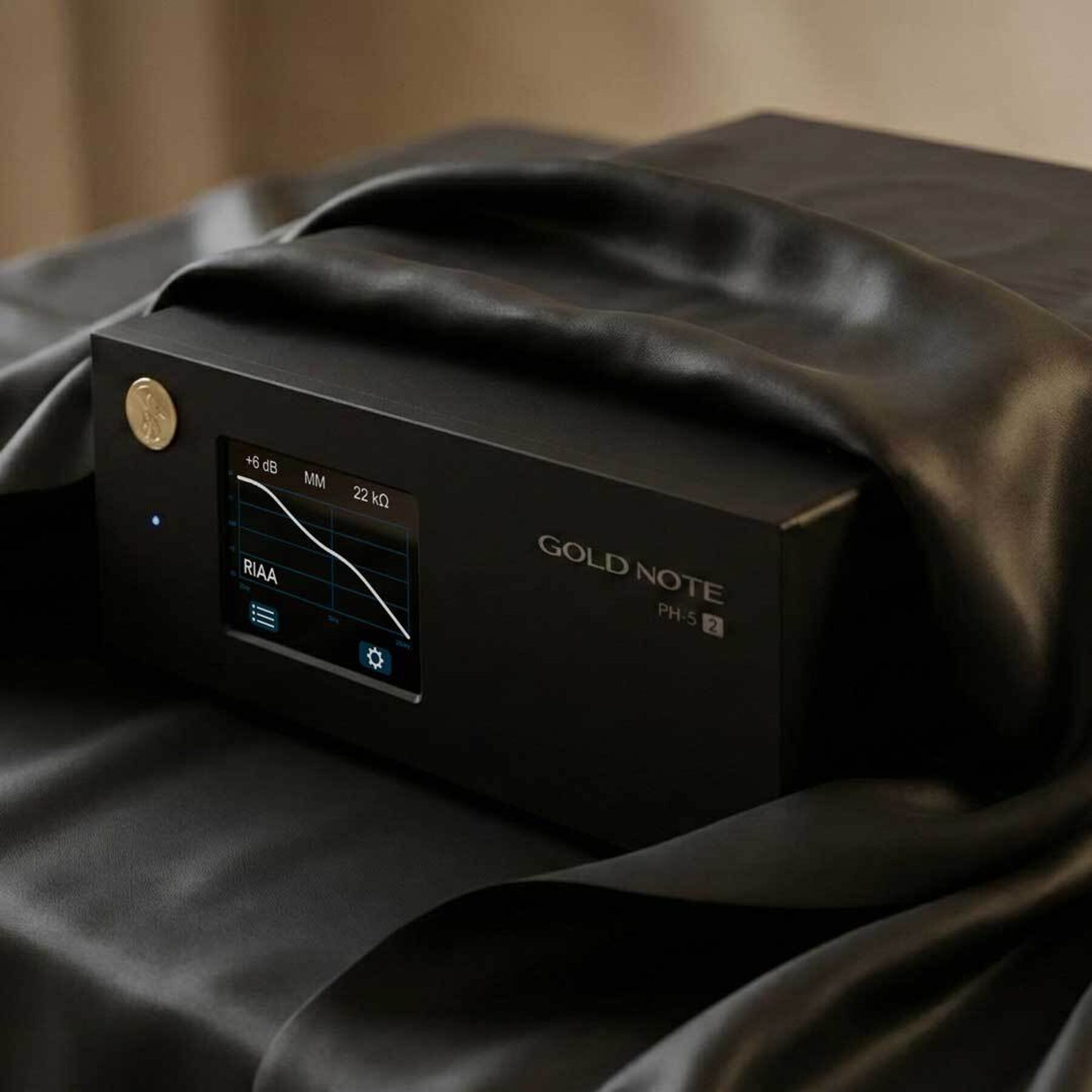

PH-5.2 also introduces a revised interface, designed to make interaction clearer and more immediate.
Readability has been improved, navigation is faster and parameters are easier to set with precision.
This aspect is far from secondary. In an analogue system, correct setup is an integral part of sound quality. Accurate adjustment of load and gain allows the cartridge to operate under ideal conditions, avoiding approximations that inevitably affect listening results.
Greater operational control means greater musical coherence.

EQUALISATION CURVES: THE HEART OF THE PROJECT
The true conceptual core of PH-5.2 lies in the way it addresses the subject of equalisation.
For Gold Note, equalisation curves are not tools to “improve” or “correct” the sound.
They are tools to reconstruct the real context of the recording.
The RIAA curve, today considered a standard, has not always been the only one in use. Many historical recordings were made using different curves, linked to the era, the studio and the recording technologies available at the time.
Applying an incorrect curve means altering tonal balance, modifying dynamics and changing the character of the recording.
PH-5.2 is designed to avoid all of this.
Following the same principle that made the PH-1000 and PH-10 true reference points in the sector – authentic game changers – PH-5.2 places equalisation at the service of recording truth, not interpretation.
When the curve is the correct one, the record does not sound different, nor “better”: it simply sounds right.

AN IMPORTANT HERITAGE, IN A MORE ACCESSIBLE FORM
PH-5.2 is born from an important heritage.
It is the direct descendant of the PH-1000 and PH-10, sharing their philosophy and approach, while translating them into a more compact and accessible form.
This is not a compromise at a lower level.
It is a conscious synthesis, making principles of the highest level available to a wider audience, without renouncing what truly matters.
PH-5.2 is not designed to add character or personality to the sound.
It is designed to remove what is not needed.
When background noise is reduced, the power supply is stable, the setup is correct and the equalisation curve is the right one, the system stops interfering.
At that point, vinyl stops sounding “different”.
And simply becomes true.

Tech spec

EQUALISATION CURVE CONTROL

3 EQ curves (RIAA, Decca London, American Columbia) all with Enhanced option

INFRASONIC FILTER

10Hz/36dB octave

FREQUENCY RESPONSE

20Hz -20kHz ± 0.3dB
Enhanced 20Hz-50kHz ± 0.3dB

THD (Total Harmonic Distortion)

<0.05% @ 1kHz

SIGNAL TO NOISE RATIO

89dB

DYNAMIC RESPONSE

105dB

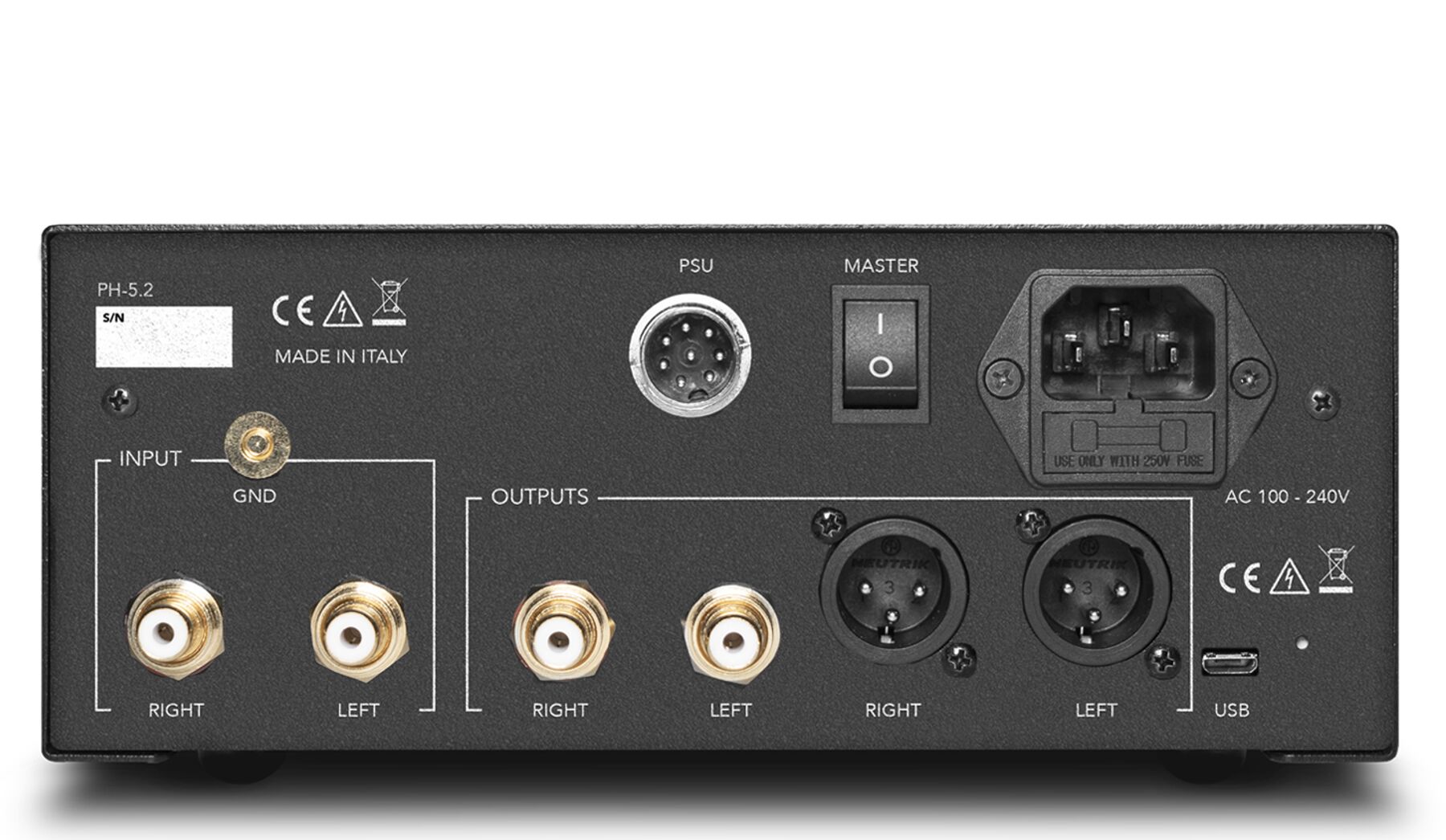

ANALOGUE INPUT

1x RCA stereo MM/MC

AUDIO OUTPUTS

1x unbalanced RCA, 1x balanced XLR

INPUT IMPEDANCE

9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ]

For more information click here to visit the Gold Note website
