805 D4 Signature
The 805 D4 Signature stand-mount loudspeaker is compact and powerful. It’s proof positive that small can still be beautiful.
£11,750
2 Years warrantyFinance example
£2,350.00 initial 20% deposit then £313.33 per month for 30 months. Other finance terms available. Finance subject to status805 D4 Signature
£11,750
Compact and powerful

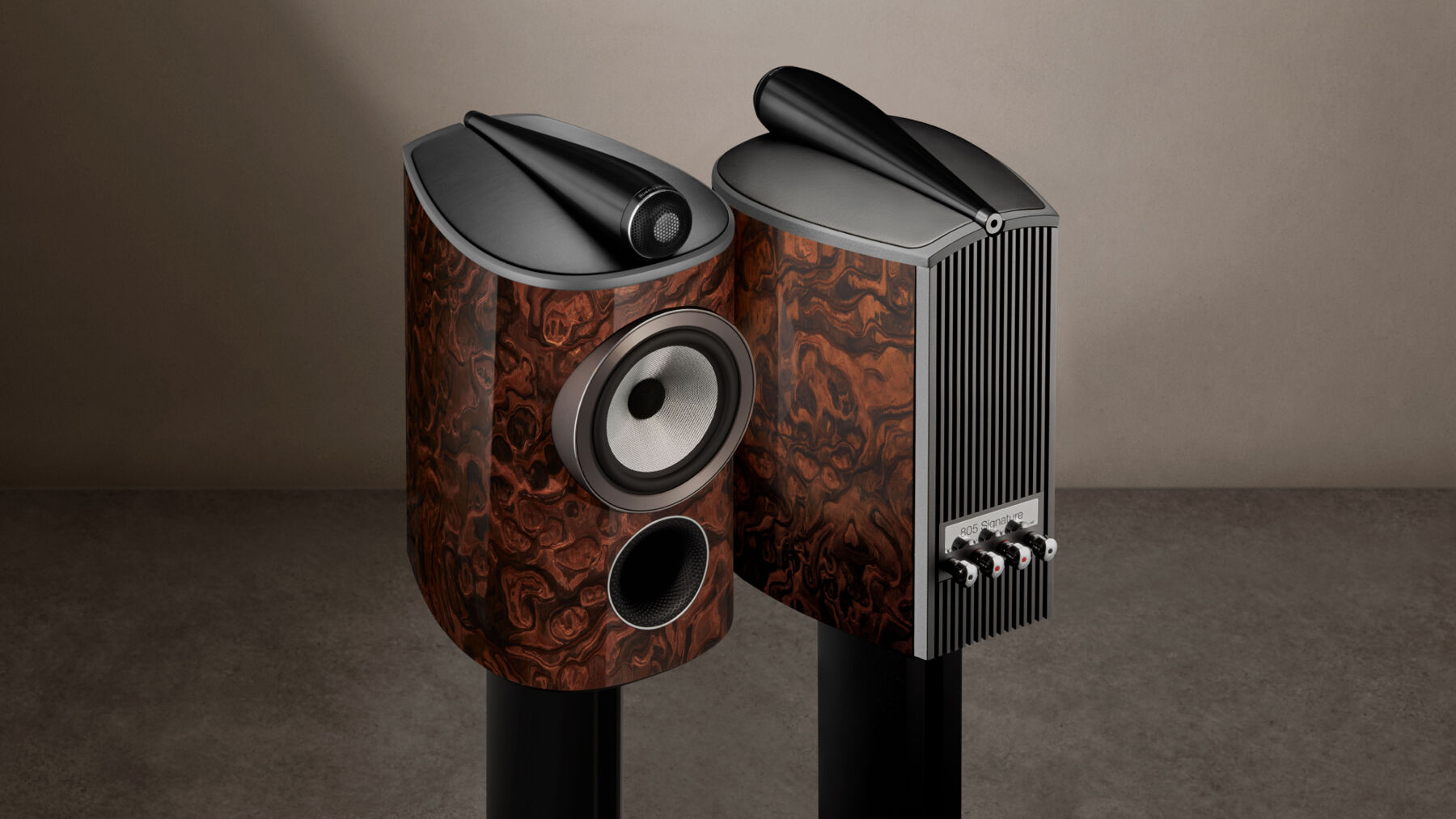

The 805 D4 Signature stand-mount loudspeaker is compact and powerful. It features fully optimized technologies, including our Diamond Dome tweeter and Solid Body Tweeter-on-Top. It's proof positive that small can still be beautiful.

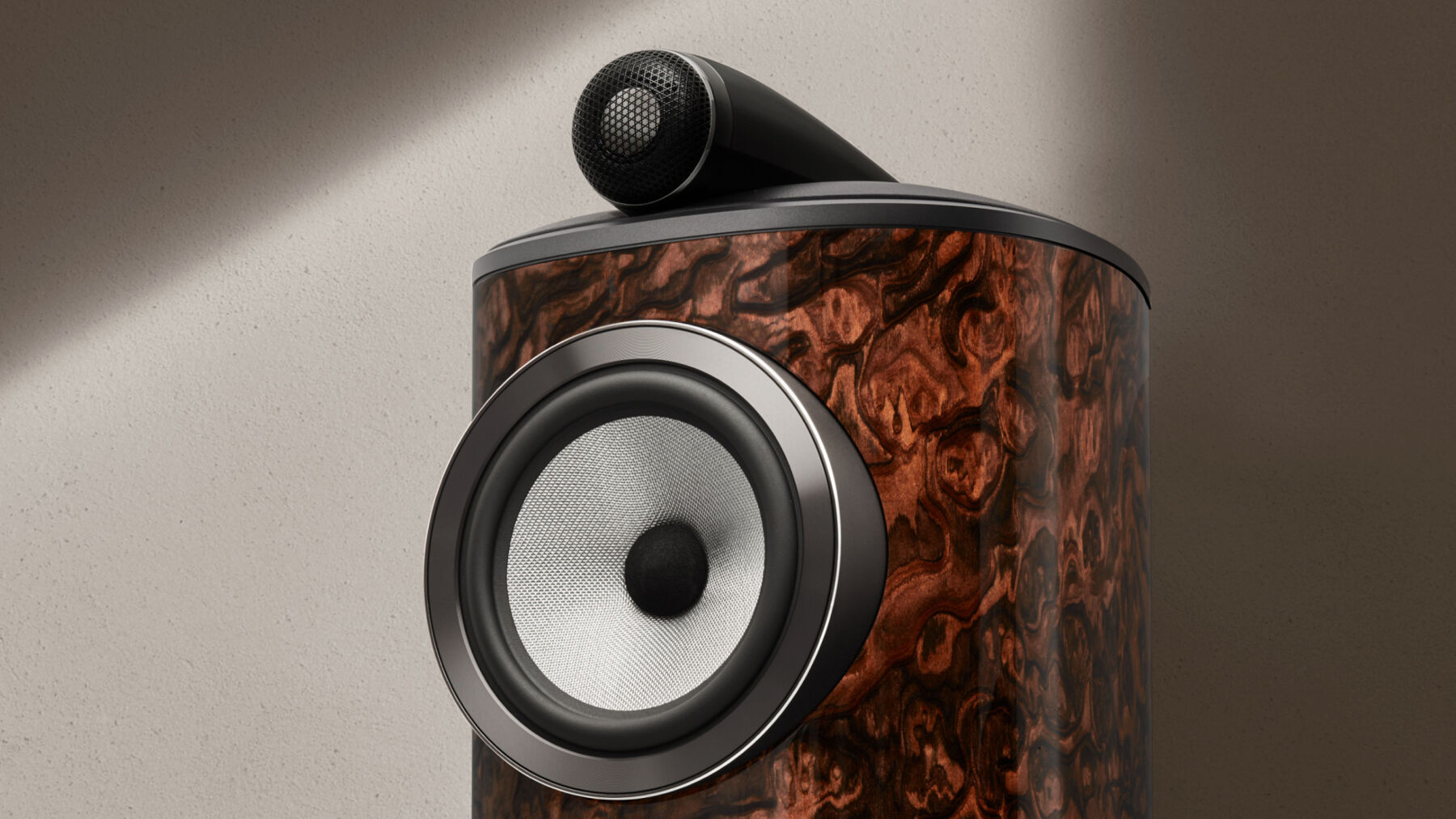

Diamond Dome tweeter
One of their most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond Dome tweeter is the perfect combination of low mass, exceptional stiffness, and outstanding accuracy. Fifteen years after they introduced it, they haven't found a better tweeter dome technology.
All-new tweeter grille
Their Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system and an all-new design of tweeter grille, producing an even more free and open sound with high frequencies.
Upgraded crossover
Their 805 D4 Signature uses upgraded rear-mounted crossover designs mounted on stiff aluminum spines. This isolates the sensitive capacitors from the unwanted effects of air pressure within the enclosure and makes for a very effective heatsink to ensure optimum performance when in use.
Continuum™ Cone
Thanks to its composite construction, the Continuum™ Cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance from the 805 D4 Signature. Voices and instruments can be heard with precision and transparency.
Tech spec
Technical features
Diamond tweeter
Solid Body Tweeter-on-Top
Continuum™ cone bass/midrange
Matrix™
Anti-Resonance plug
Flowport™
Drive units
1x ø25mm (1in) Diamond Dome high-frequency
1x ø165mm (6.5in) Continuum™ cone bass/midrange
Frequency range
-6dB 34Hz to 35kHz
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1 % 90Hz - 20kHz
<0.3% 120Hz - 20kHz
Frequency response
42Hz to 28kHz ±3dB
Sensitivity
88dB spl (2.83Vrms, 1m)
Dimensions
Height: 440mm (17.3in) / Width: 240mm (9.4in) /
Depth: 373mm (14.7in)
Weight
15.55kg (34.3 lb)
