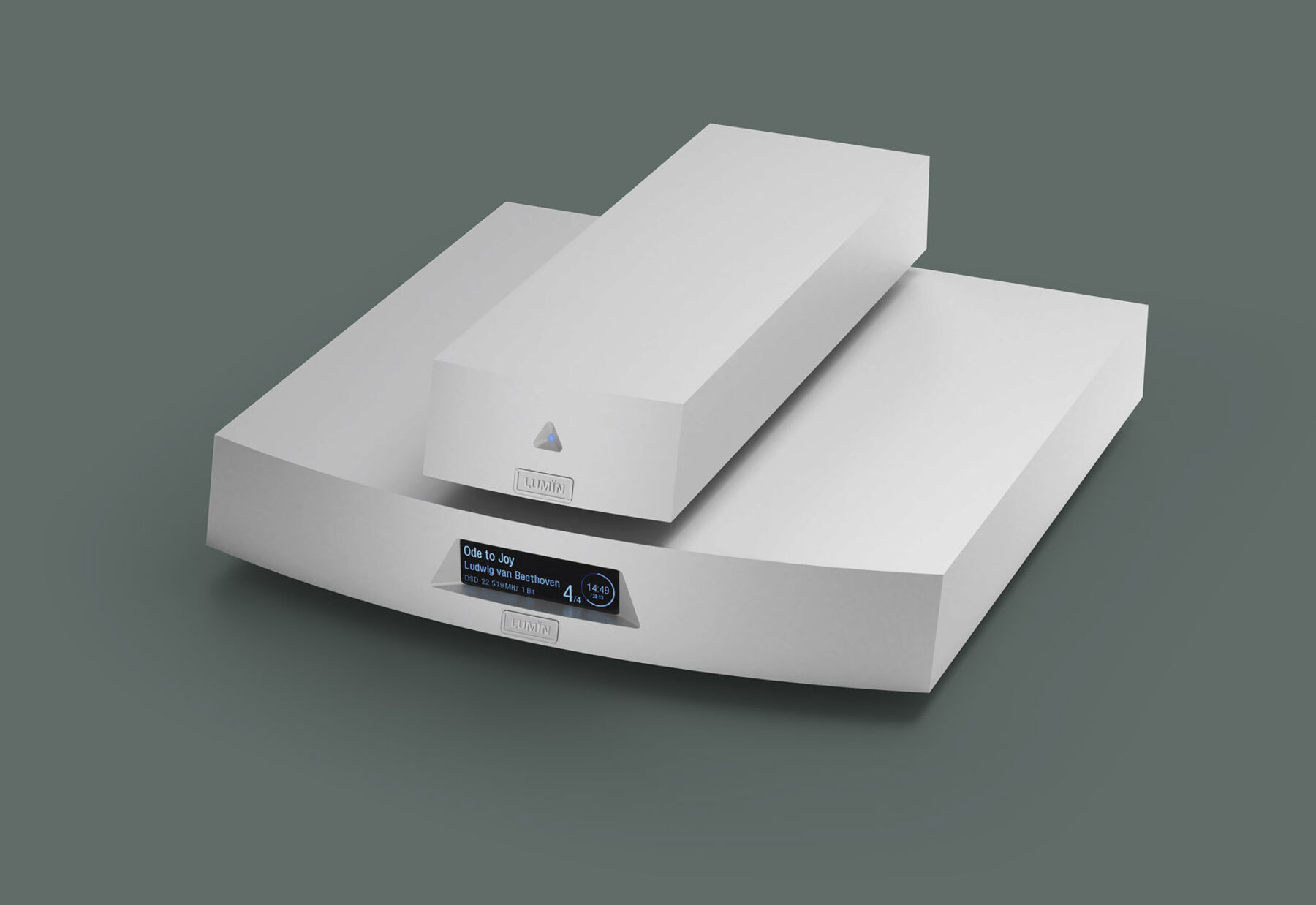

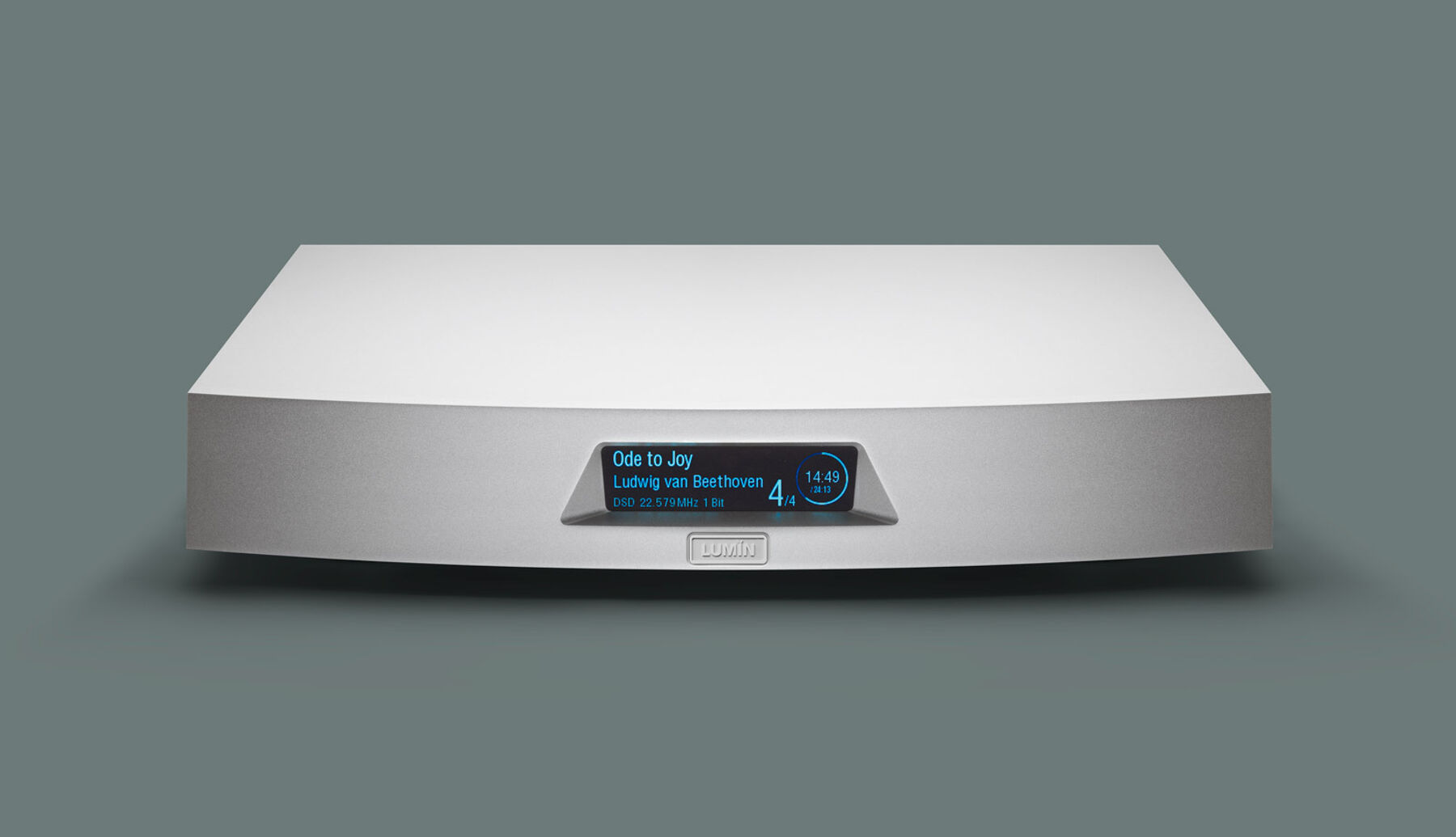

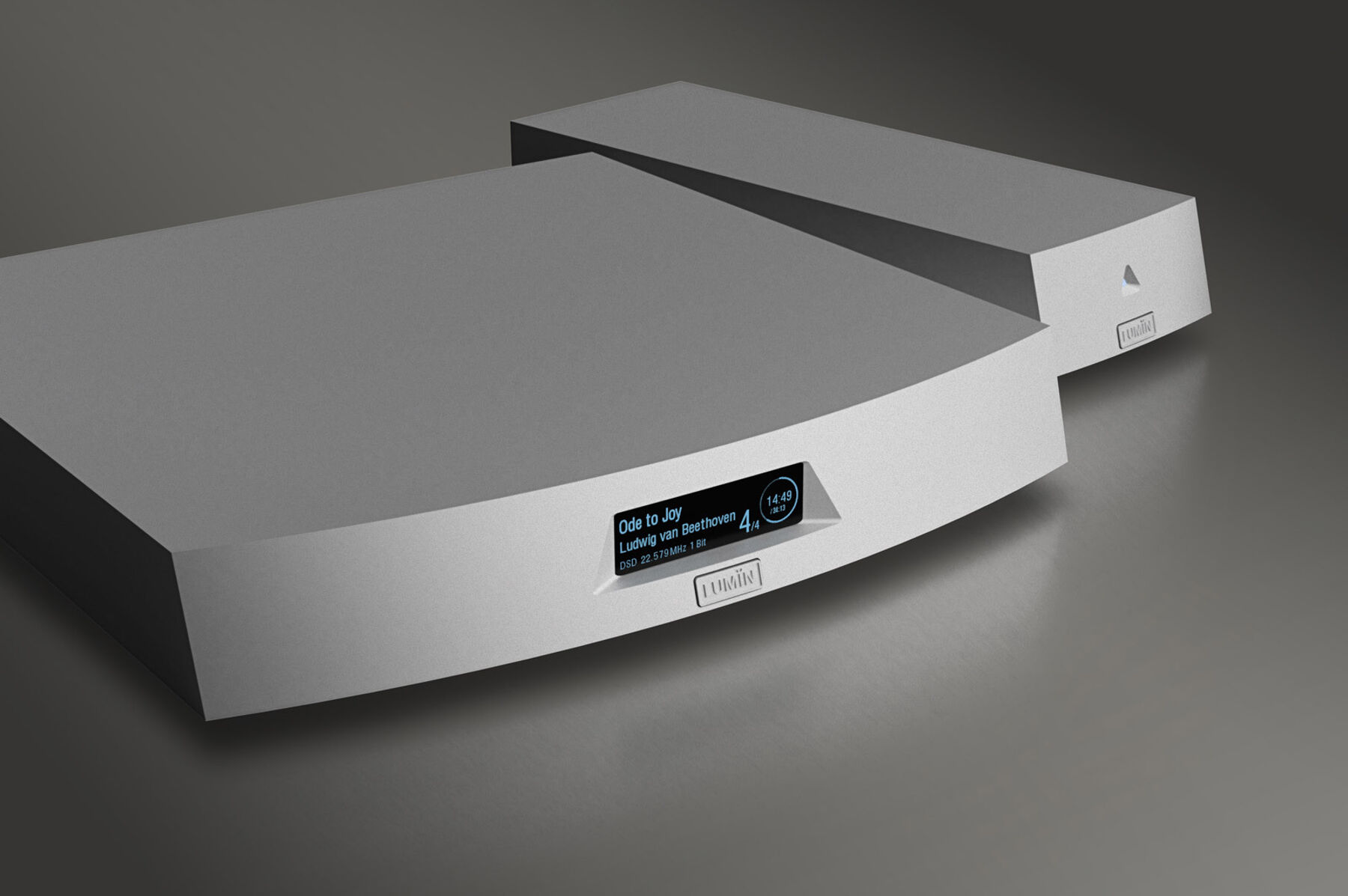

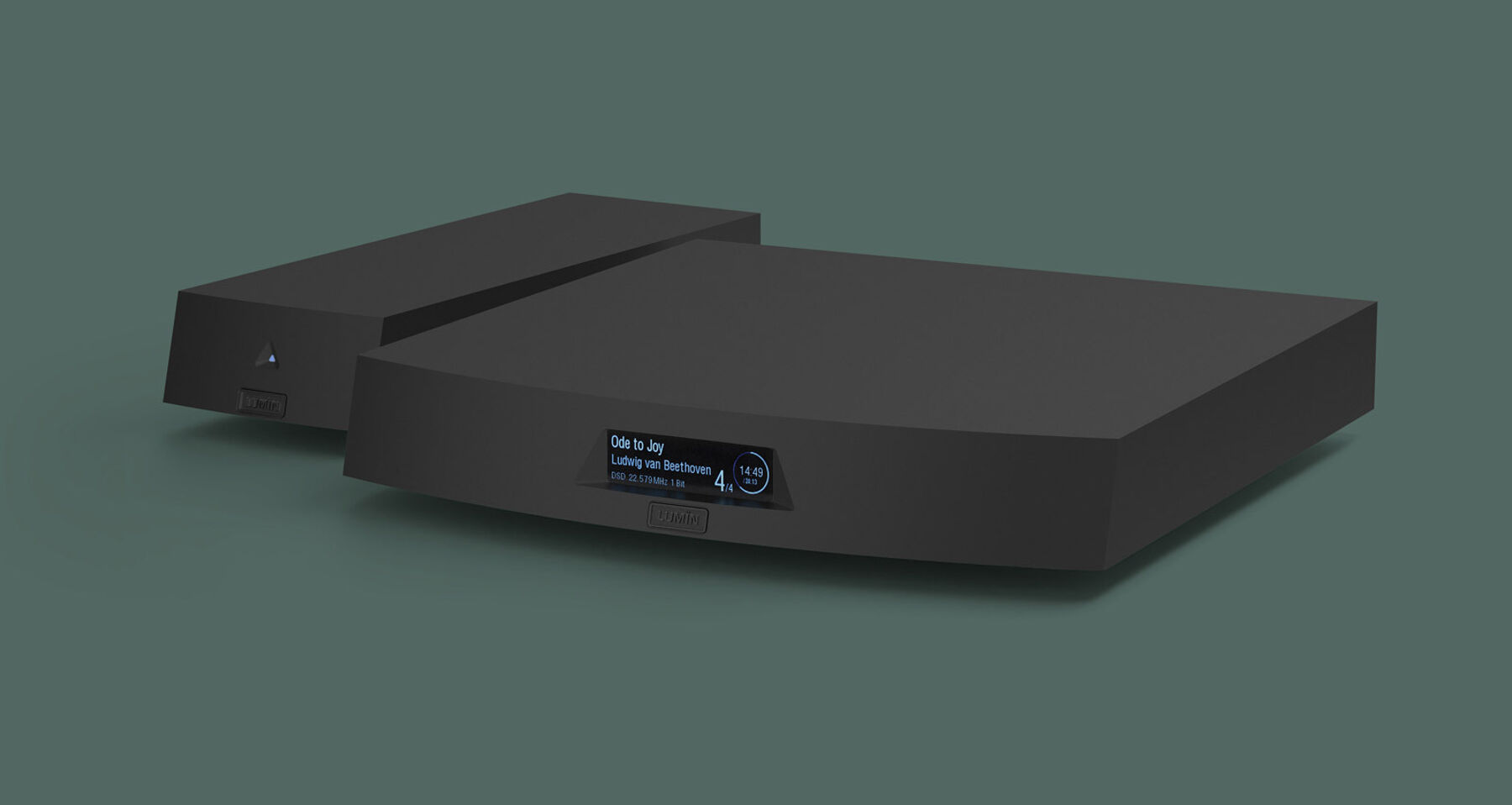

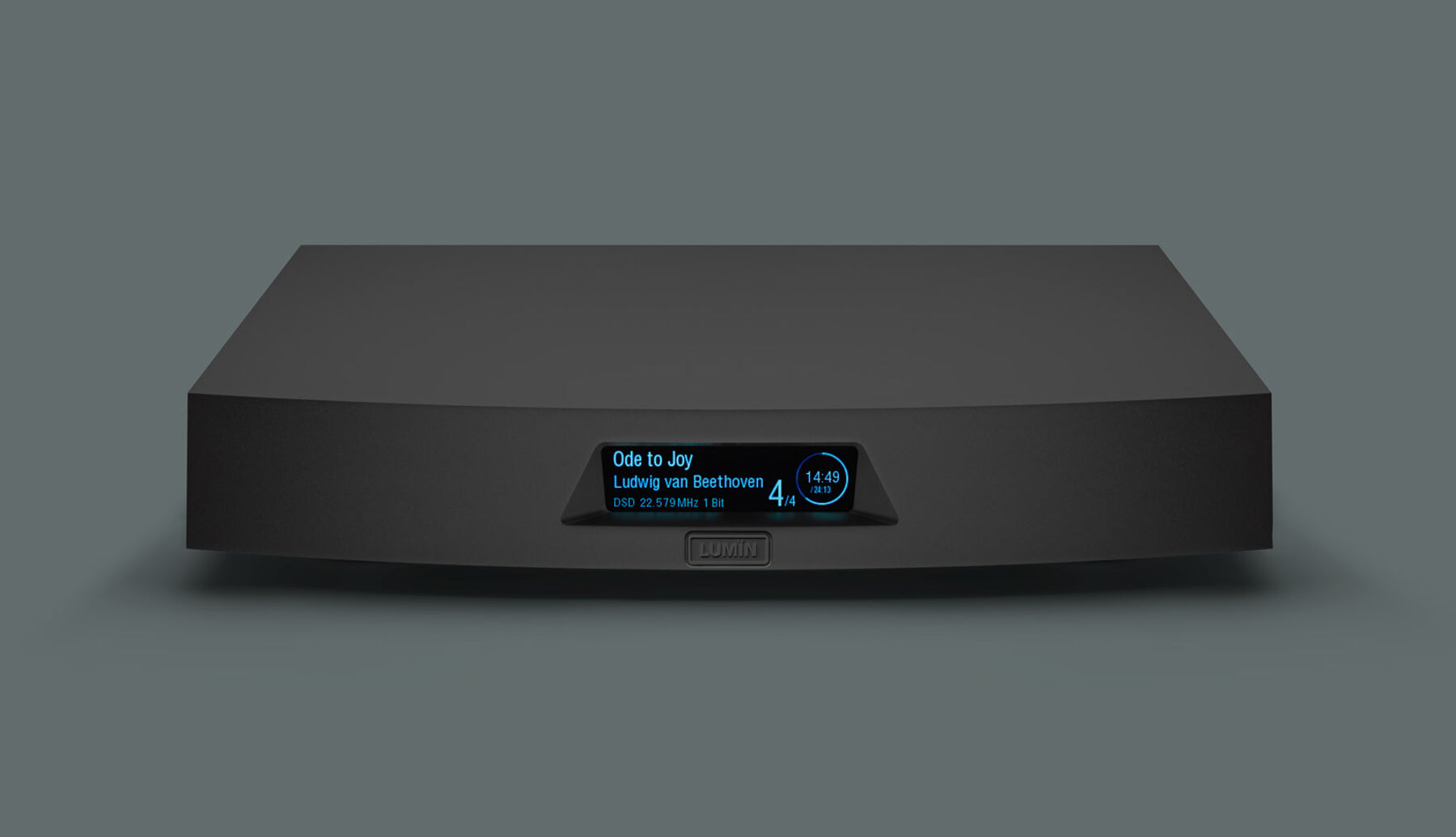

U2X
Equaling X1 in both status and build-quality, LUMIN U2X is a completely new flagship streaming transport designed to be the ultimate in digital output.
£8,995
2 Years warrantyFinance example
£1,799.00 initial 20% deposit then £239.87 per month for 30 months. Other finance terms available. Finance subject to statusU2X
£8,995
LUMIN U2X and its separate power supply use the indestructible single-billet CNC chassis construction methods from LUMIN X1 and focusses on transport-specific innovations like a newly developed isolated circuit architecture for the increasingly common USB digital output.
Also completely new for U2X are our most advanced clocking circuits to date which include new 10M clock input and output connections.
A flagship Transport-only unit featuring brand new LUMIN components
Solid billet CNC chassis for maximum stiffness and isolation
External power supply featuring solid billet CNC construction and dual toroids and low-noise linear regulator
Native DSD512 & PCM768 playback
10M Clock input and outputs
New isolated USB audio output
3 USB ports including a NEW dedicated isolated USB output
Fibre Network provides complete isolation from network digital noise
Dual-Network interface with built-in Network Switch
Leedh Processing lossless volume control

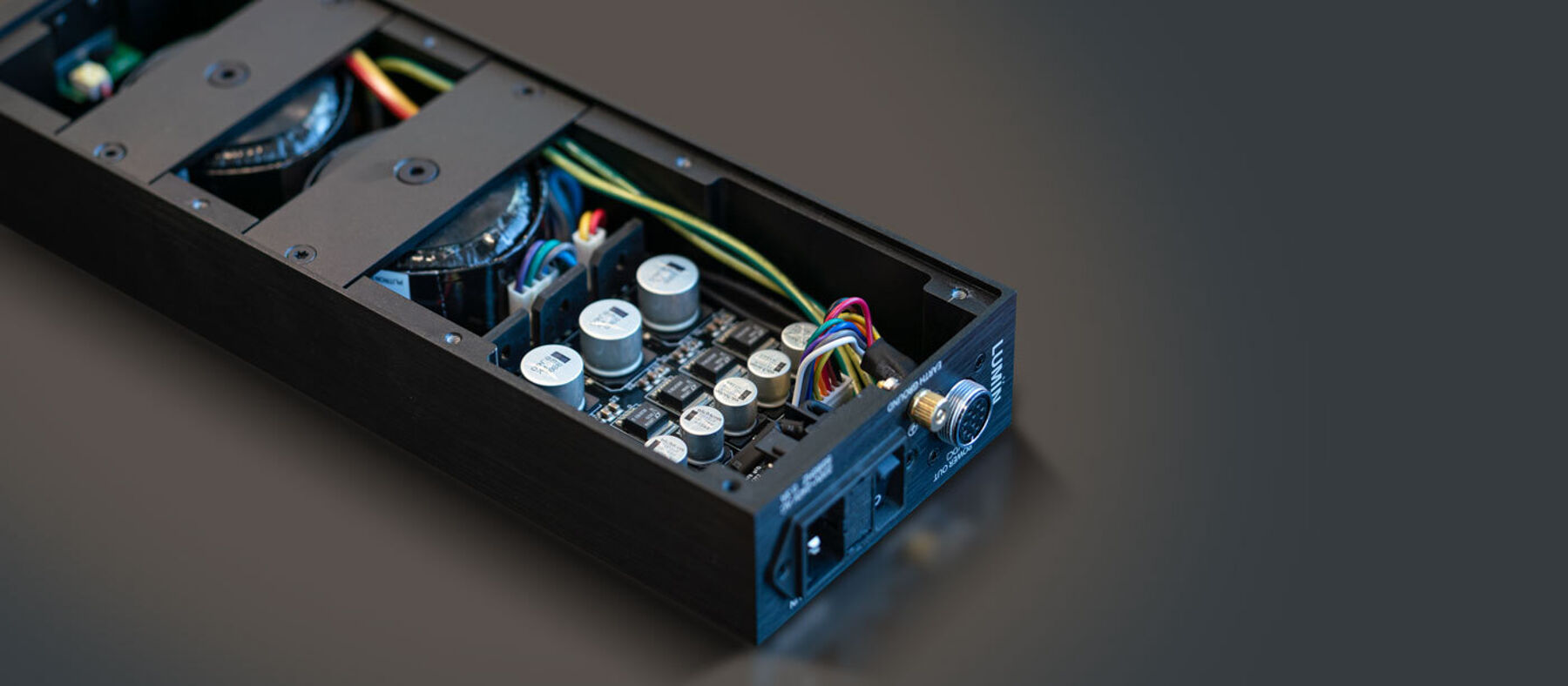

External dual-toroidal linear power supply
- Solid billet construction using all the same techniques as the main chassis
- Thick aluminium walls provide even more shielding
- Separate digital and analogue circuitry
- Low-noise Linear Regulator
- The highest quality components used throughout
Completely new clocking circuitry
LUMIN U2X is the first LUMIN model to include 10M Clock I/O.
Two 10M clock outputs provide flexibility in synchronising multiple digital audio devices and allows for a "master" clock configuration, where one unit dictates the timing for other units. This approach can help minimize jitter by ensuring all devices are operating on a consistent and stable timing reference.
Dedicated USB port for Audio Output
- New dedicated isolated USB digital audio output port
- Leaves two ports free for music storage and accessories
Latest processing system
- The first LUMIN flagship to feature our fastest processor
- First launched in 2022, the latest architecture provides a new foundation for LUMIN
- Increased processing power and storage capacity provide greater resampling flexibility, audio processing performance and future-proofing.
- Up/down sampling up to DSD256
Single-billet CNC chassis construction
- Like our other flagship products, LUMIN U2X is milled from a solid block of aluminium
- The thick uninterrupted walls provide maximum stiffness and isolation
"The specs alone don’t tell you just how solid and well-built this hewn- from-solid pair of chunky slabs of black or silver aluminium feel in the flesh."
X1: Hi-Fi+ Issue 169
Advanced streaming services & technologies
Every LUMIN player comes with support for a wide range of popular streaming services including Roon, TIDAL, TIDAL Connect, Qobuz, Qobuz Connect, Spotify, KKBox, QQMusic, FLAC Radio Stations and more...
Tech spec
DSD Support:
Up to DSD512 22.5MHz, 1-bit
PCM Support:
Up to 768kHz, 16–32-bit, Stereo
Upsampling rates & bit depths:
DSD256 upsampling option for all files
PCM 384kHz upsampling option for all files
Digital Output Stage:
Isolated USB:
Native DSD512 support
PCM 44.1–768kHz, 16–32-bit, Stereo
Optical, Coaxial RCA, Coaxial BNC & AES/EBU:
PCM 44.1kHz–192kHz, 16–24-bit
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

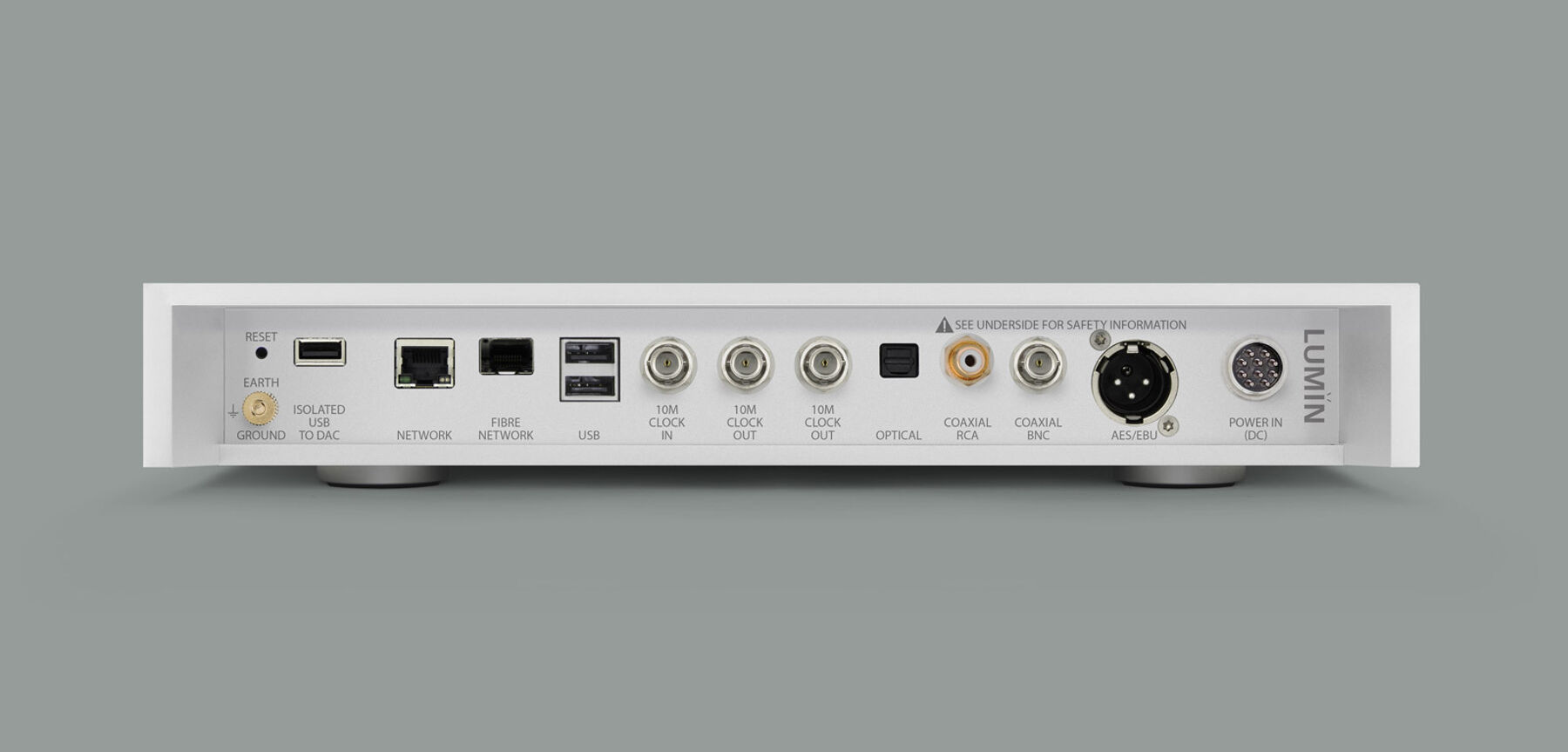

10M Clock I/O:
BNC Input:
50 Ohms on BNC
BNC Outputs:
50 Ohms on BNC
Optical Network:
Industry-standard SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
