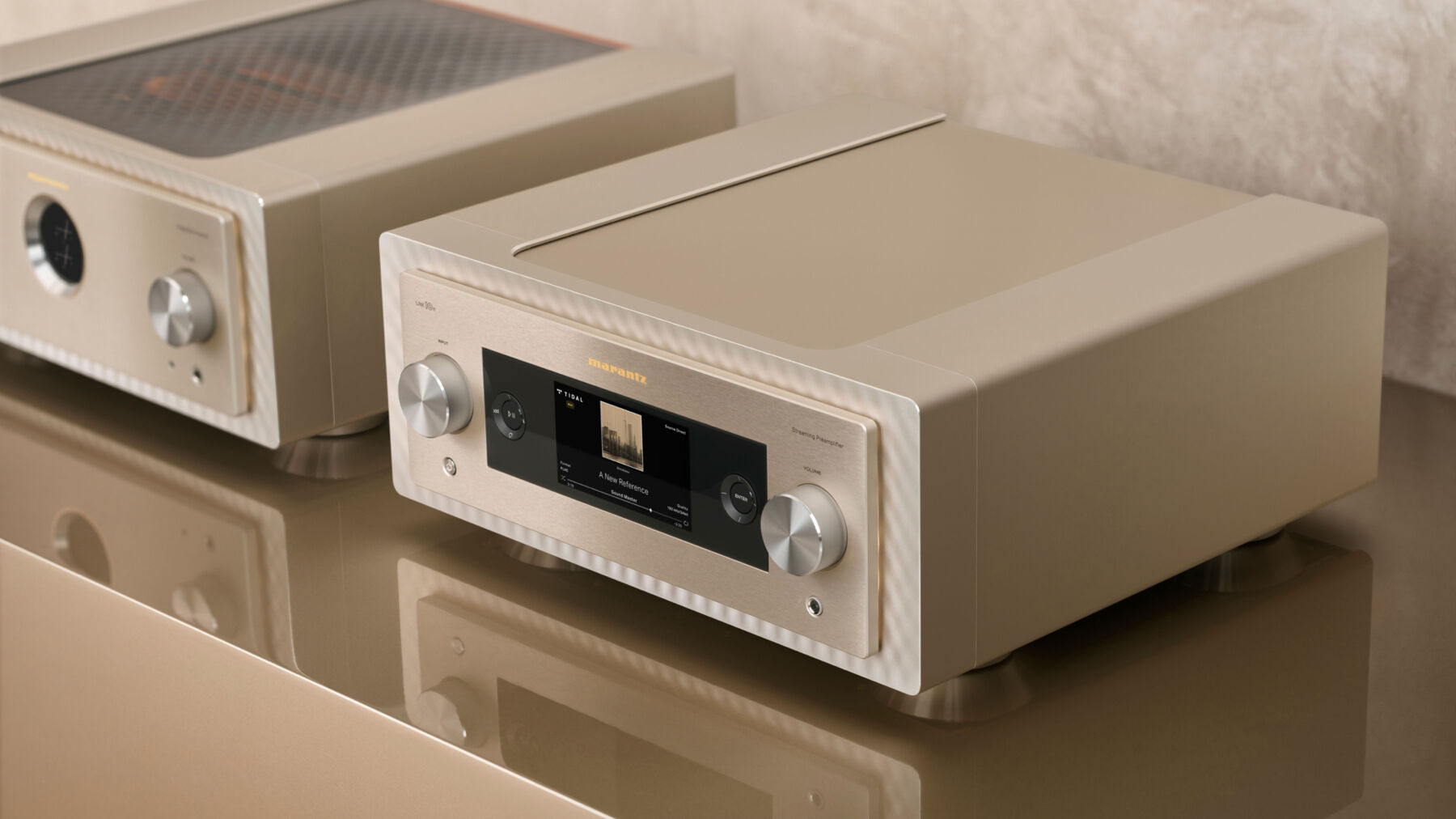

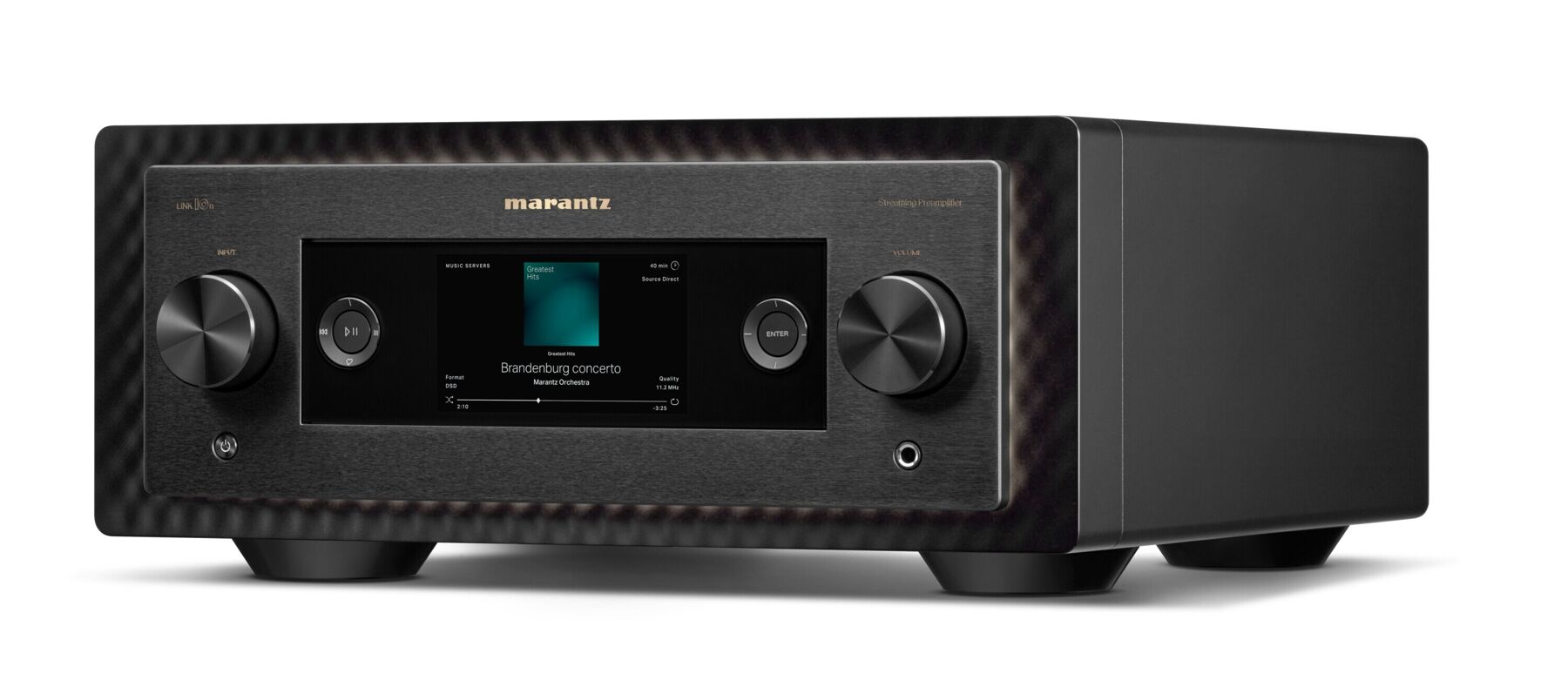

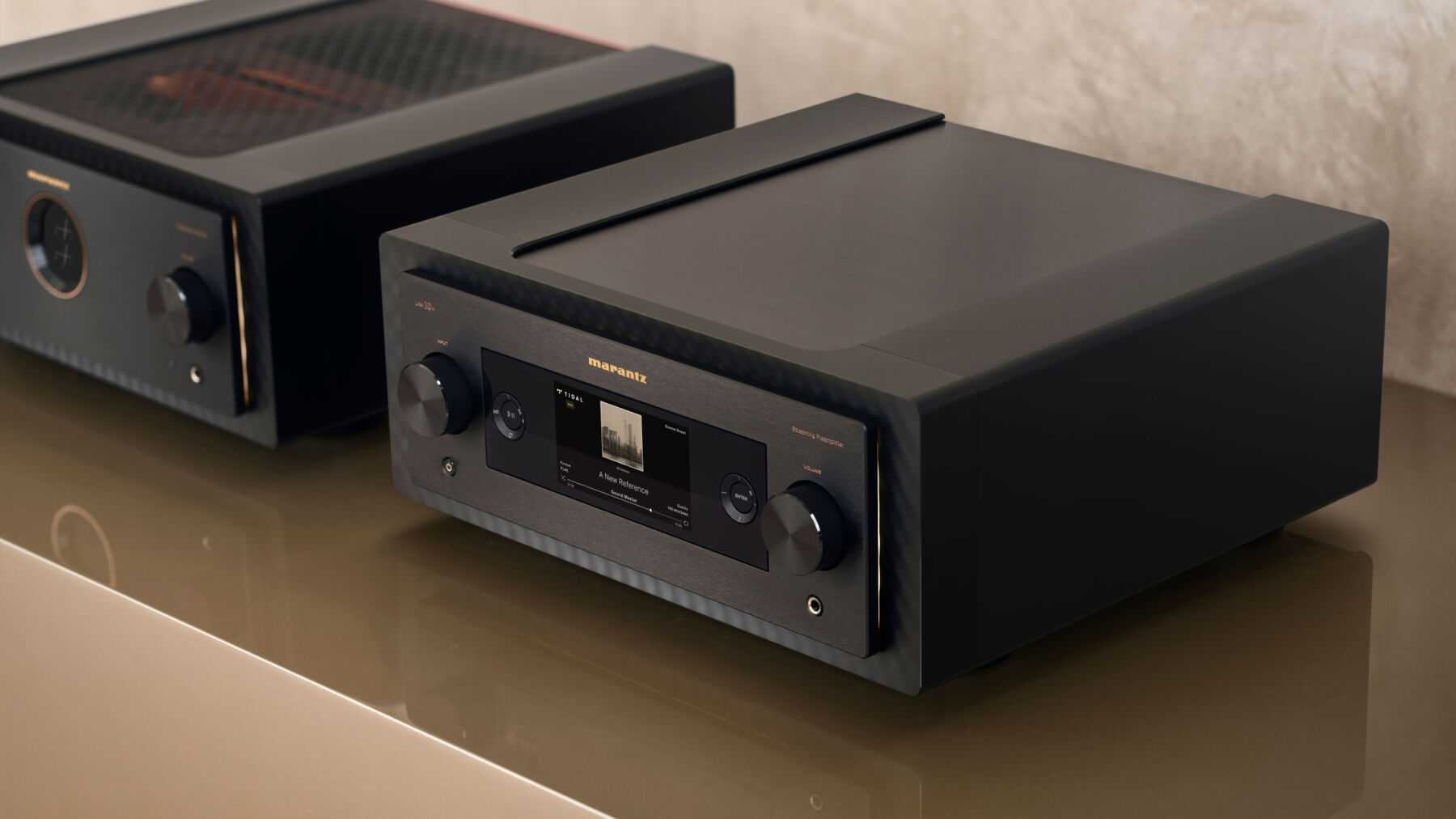

LINK 10n is a reference-class network audio player engineered using the same technology and artisanship that establish MODEL 10 and SACD 10 as class leaders.
Finance example
£2,080.00 initial 20% deposit then £277.33 per month for 30 months. Other finance terms available. Finance subject to statusLink 10n
£10,400

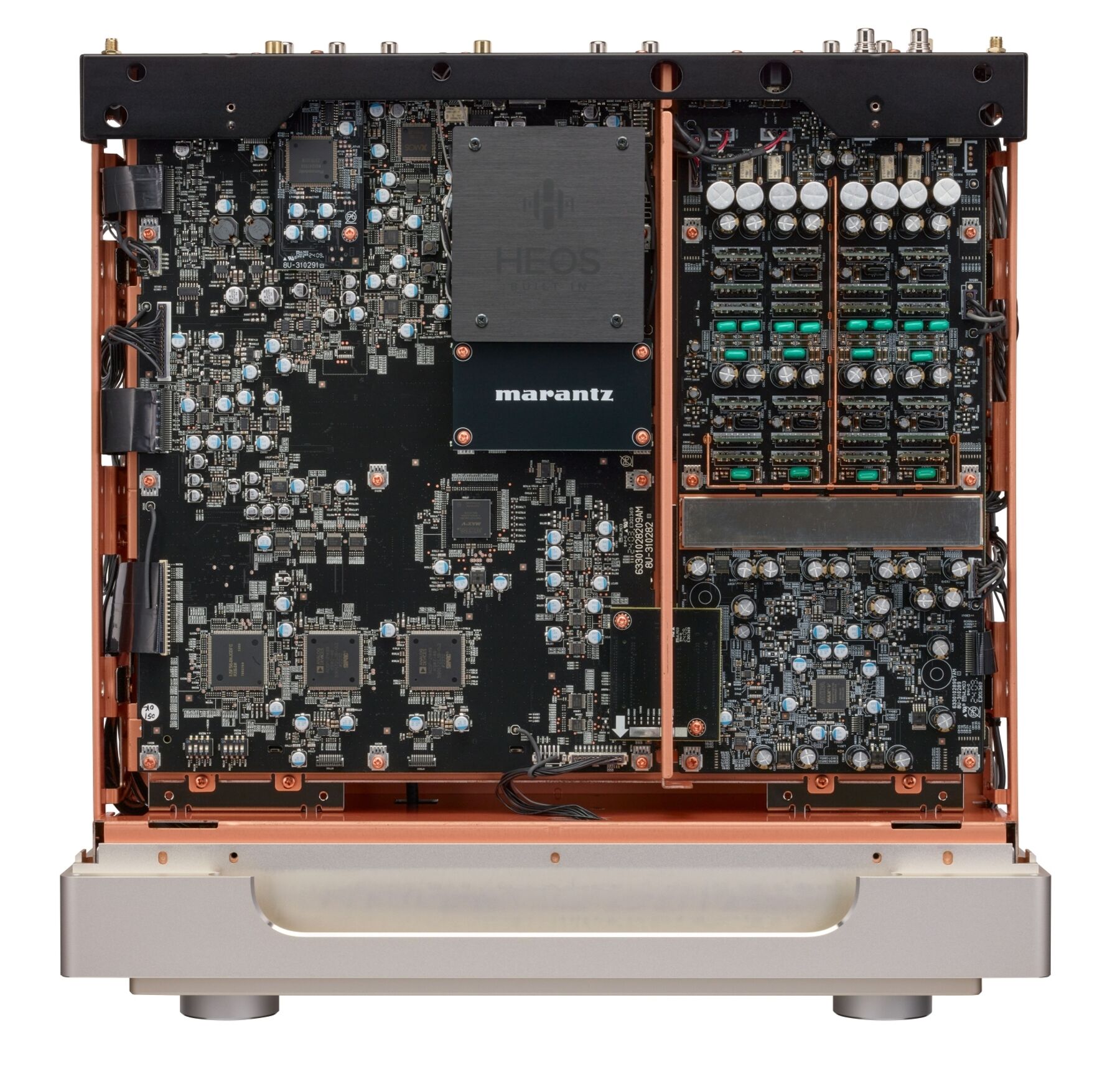

From the triple-layer aluminum chassis with copper plating to entirely original multi-layer PCBs, isolated sub-enclosures and HDAM modules, LINK 10n is the product of decades of expertise in audio engineering. It sets a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.
As the flagship digital player in the Marantz portfolio, LINK 10n features the best measured performance of any digital product we’ve ever produced. Through extensive and careful listening, the Sound Master has selected numerous premium parts to be included in key circuits that elevate audible performance to a new standard of excellence.

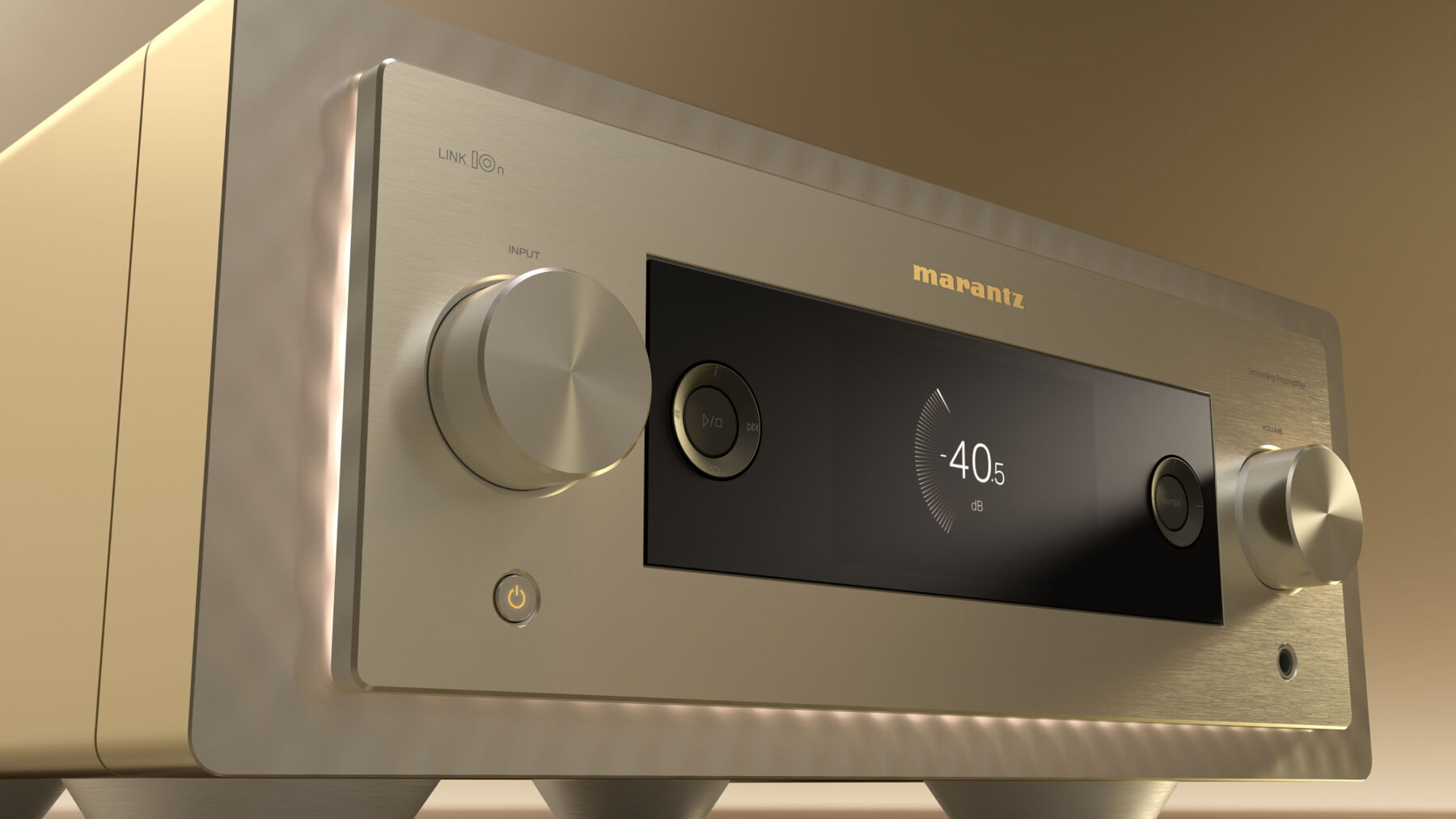

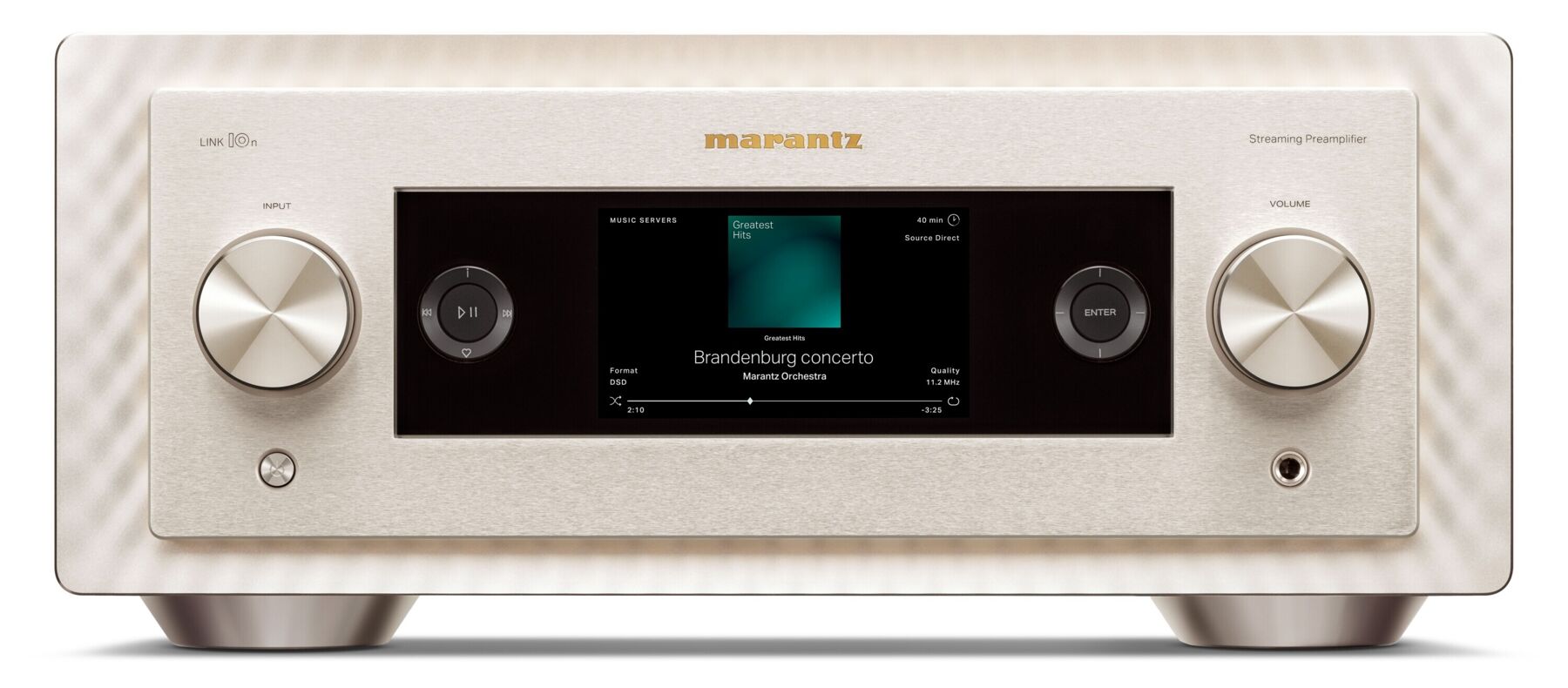

LINK 10n comes with a large high-resolution full-color display for a beautiful user interface and intuitive operation. Familiar arrow buttons make navigation effortless. Scroll to select your desired input and see source, track info, and play mode displayed on the screen, or enjoy easy HEOS onboarding and access to the app via a QR code.

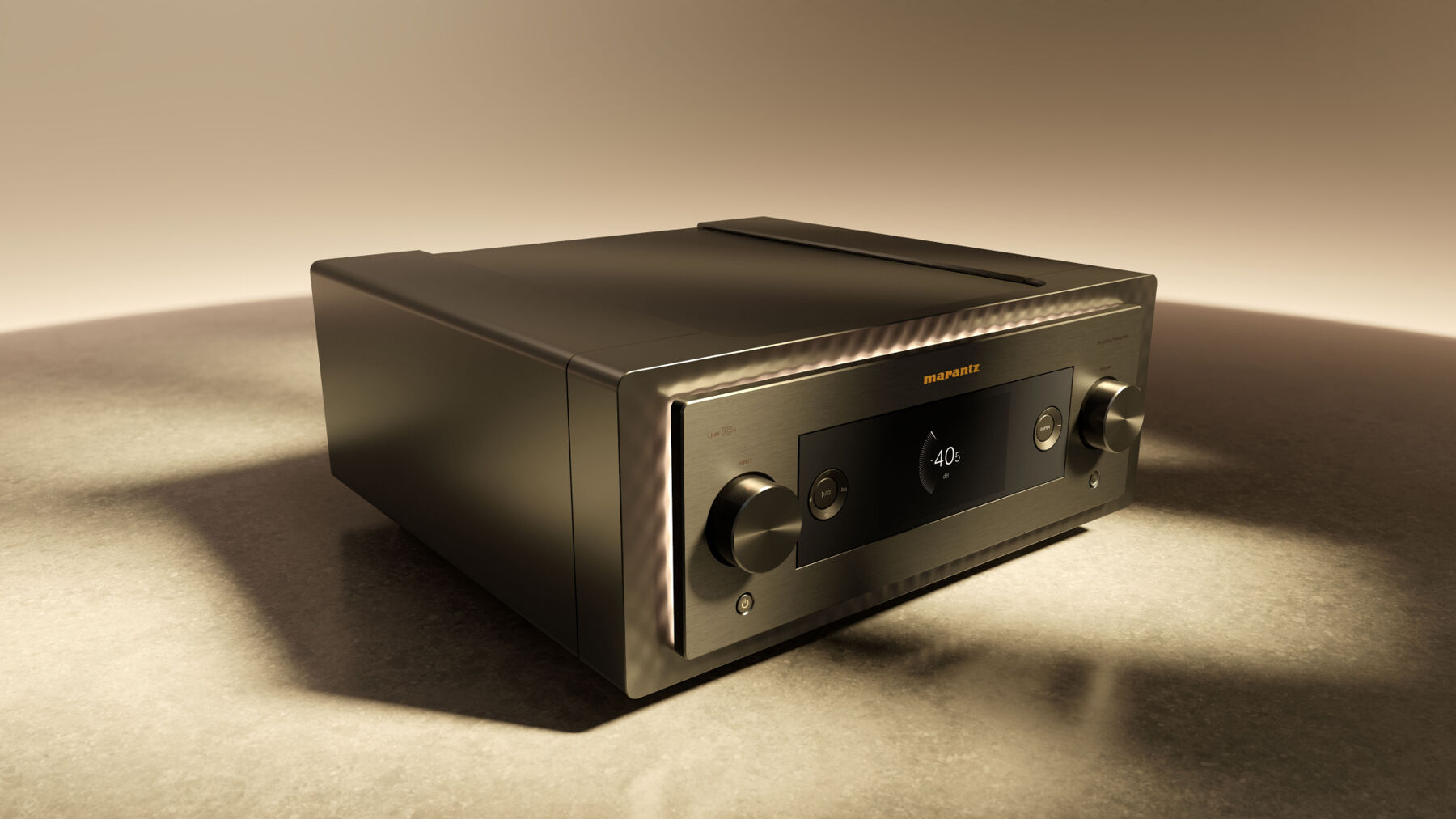

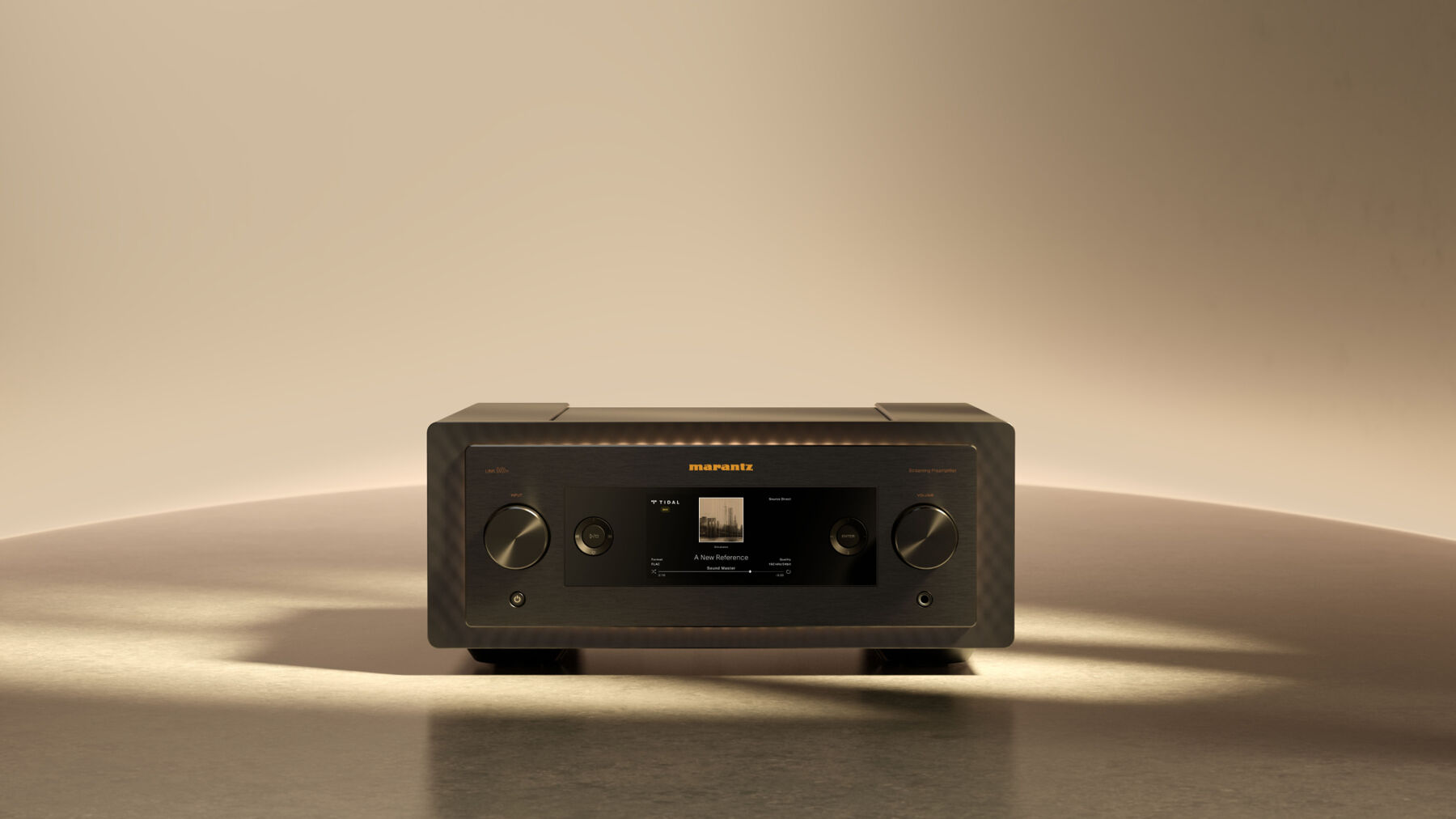

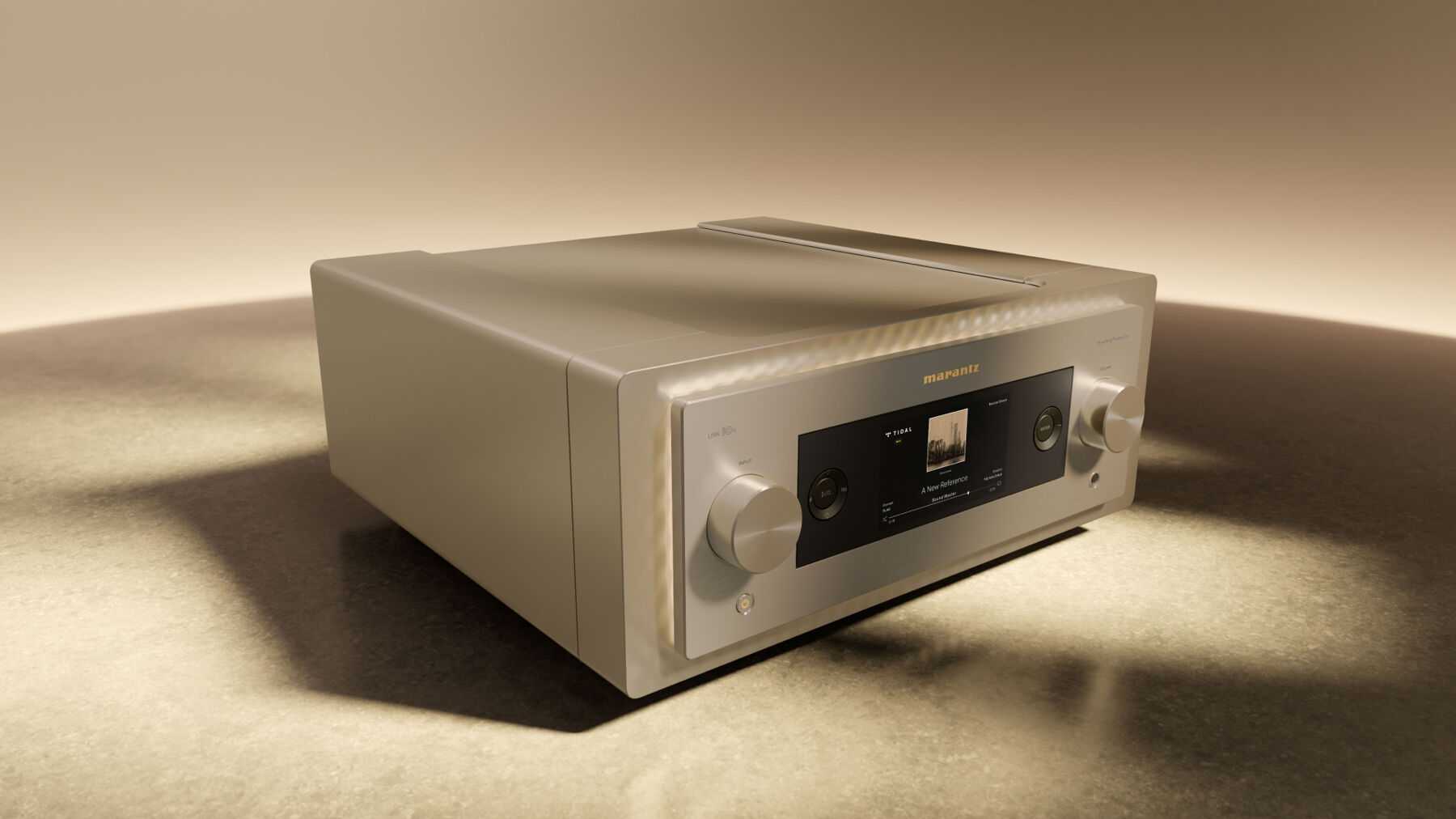

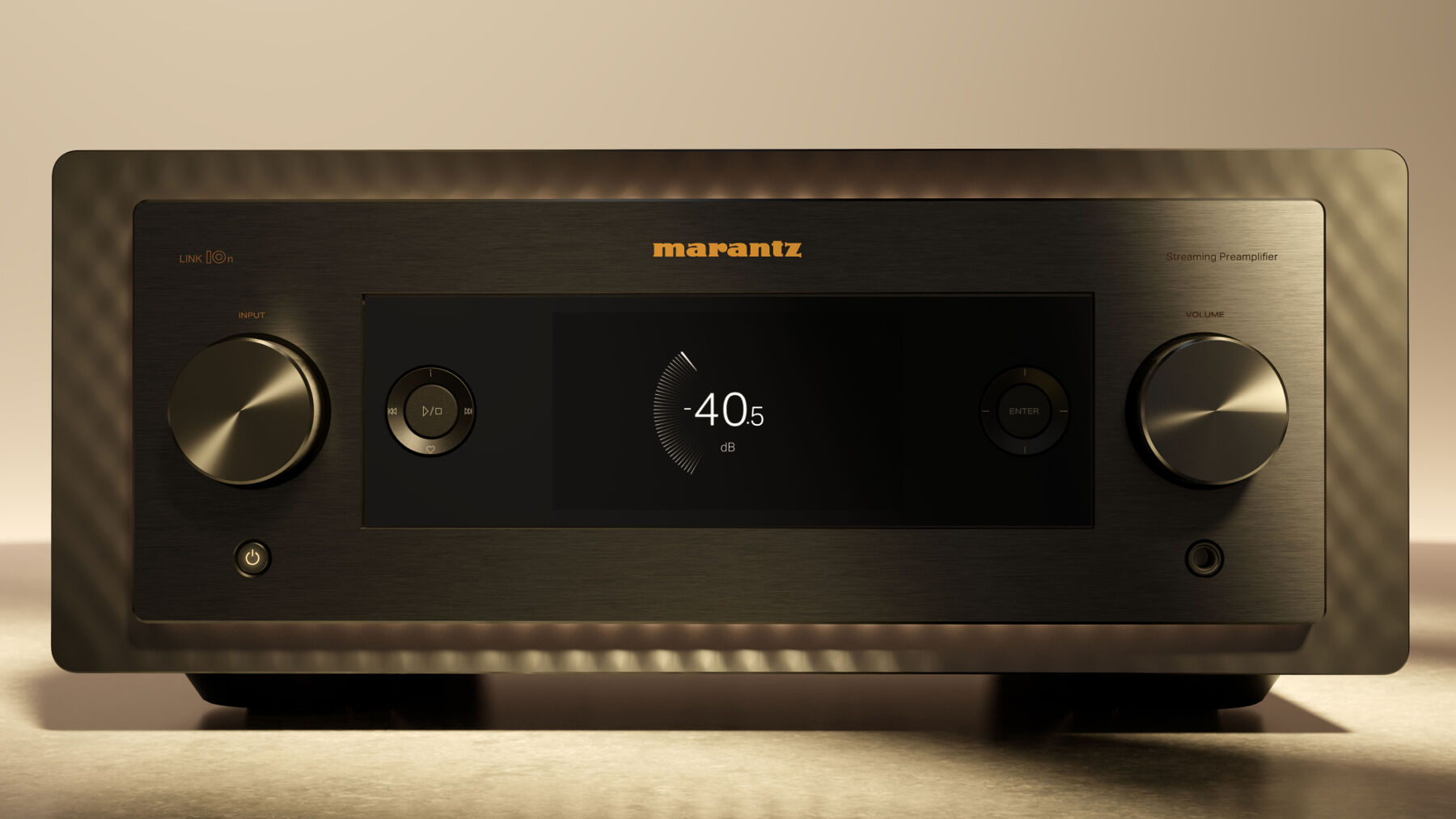

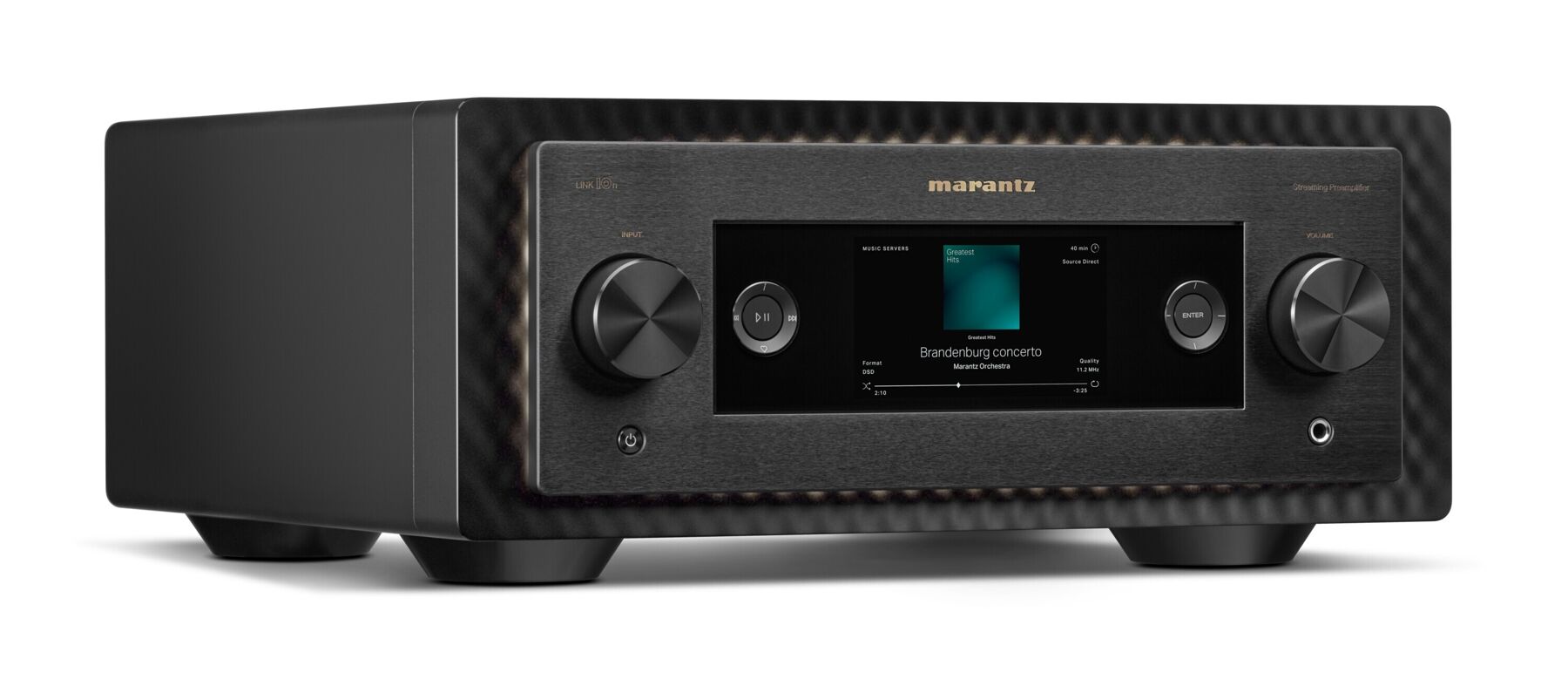

Machined and brushed aluminum control surface, sculpted backshell, spun knobs, and high-resolution full color display are each striking features of 10 Series components. The design is both distinctively Marantz, drawing inspiration from classic models, and progressively modern.

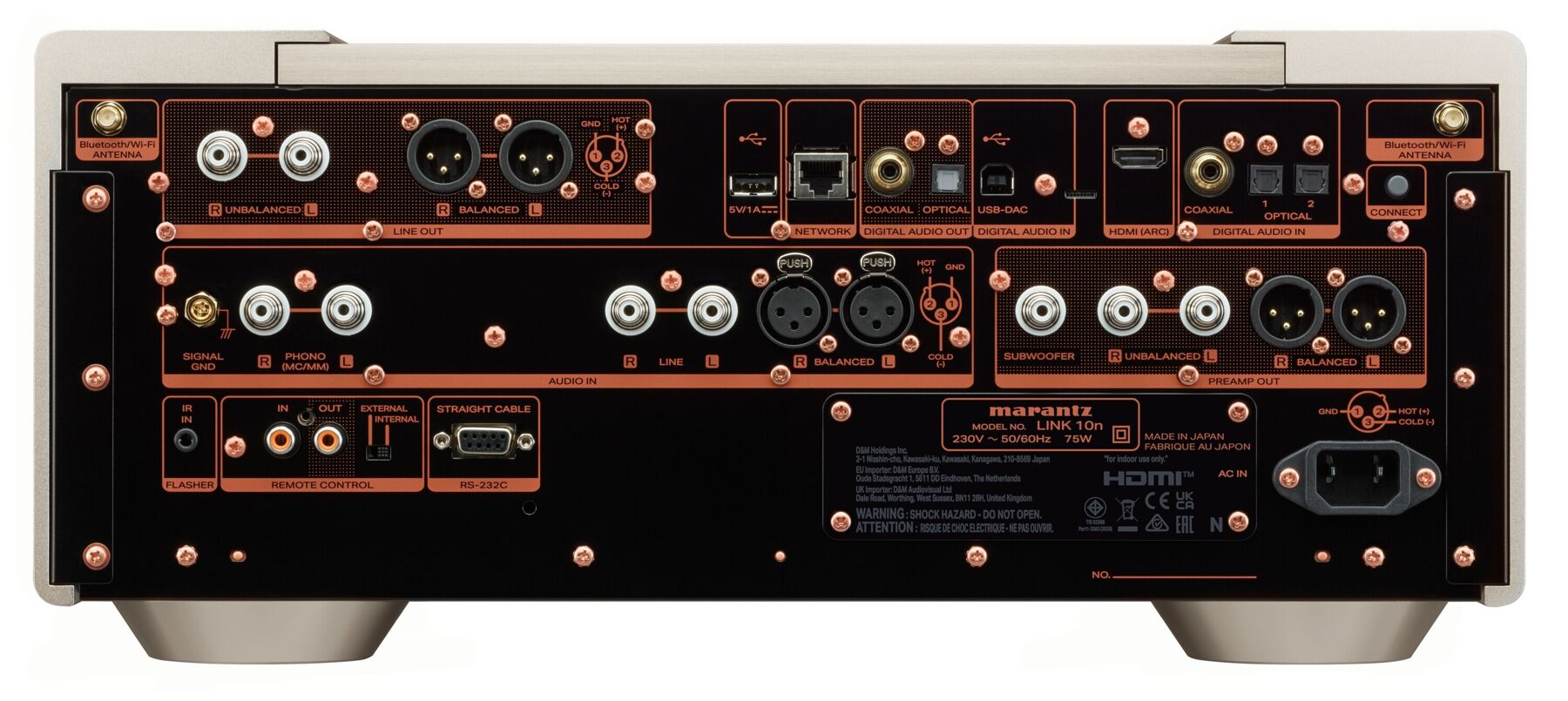

LINK 10n can act as a complete preamplifier front-end for your system, with all the functions of a modern high-end stereo system. Complete with single ended and balanced analog inputs, digital inputs, and a Marantz Premium Phono EQ supporting both MM and MC cartridges, it is also a fully featured front end for even the highest performance stereo systems.
Tech spec
Frequency Response
PCM 2Hz–50kHz (-3dB)
Harmonic distortion
PCM 0.0004%
Line Output Level
UNBALANCED : 2.0Vrms
BALANCED : 4.0Vrms
Headphone Output Level
130mW / 32 ohms
Frequency Response (analog input)
5 Hz–100 kHz (+0dB/-3 dB)
S/N ratio
PHONO (MC) : 76dB
HONO (MM) : 88dB
BALANCED : 122dB
LINE : 122dB
Phono Input sensitivity
MM : 8mV
MC : 80mV
Fixed Analog Output (RCA)
Cinch × 1
Thick nickel plated independent terminals
Pre / Variable Audio Output (RCA)
Cinch × 1
Thick nickel plated independent terminals
Fixed Balanced XLR Output
1 Pair
Pre/ Variable Balanced XLR Output
1 Pair
RCA Input / Balanced XLR Input
Yes / Yes
Phono input
Yes (MM / MC)
Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
Optical input / output (Maximum Support)
2 / 1 (on/off switchable)
44.1 kHz - 192 kHz
Coaxial input / output (Maximum Support)
1 / 1 (on/off switchable)
44.1 kHz - 192 kHz
Dimensions (WxHxD mm)
440 × 192 × 472 (with antenna)
Weight
33.3kg
